How to Carry Cargo on the Quick Haul Long
What is the Quick Haul Long's load capacity?
- The Quick Haul Long has a max gross vehicle weight of 190 kg (419 lb).
- The Quick Haul Long’s rear rack is rated to carry up to 90 kg (198 lb) of cargo or passengers.
- You can also transport up to 20 kg (44 lb) of additional cargo by attaching the Hauler Rack or Transporteur Rack to the Quick Haul Long’s sturdy, frame-mounted Combo Mount.
What is Max Gross Vehicle Weight?
The MGVW is the maximum weight that a bike has been designed to safely carry. This means the weight of the Bicycle* + Accessories + Rider(s)** + Cargo + Trailer*** must be less than the MGVW for safe riding.
*Bicycle = Refers to the weight of the bike plus battery.
**Rider(s) = Refers to weight of the cyclist and any passengers
***Trailer = Refers to weight of the trailer with no braking system AND weight of any cargo or passenger(s) on the trailer. Trailers with a braking system should not be included in the MGVW calculation.
Why does Max Gross Vehicle Weight matter?
It comes down to safety. By adhering to the bike's MGVW guidelines, riders can feel confident that the bike can safely handle the total weight in all riding conditions.
How much cargo weight can I carry on a Quick Haul Long?
To determine the maximum cargo weight you can carry on the Quick Haul Long, use the formula above. The Quick Haul Long has an MGVW of 190 kg (419 lb). From that, simply subtract the weight of the bike and any installed accessories, and the weight of the rider and any passengers on the bike.
If you are towing a trailer, don't forget to also subtract the weight of the trailer and any cargo or passenger(s) on the trailer. Note that trailers with an independent braking system should not be included in the MGVW calculation.
Cargo Accessories for the Quick Haul Long
Minvan Modules

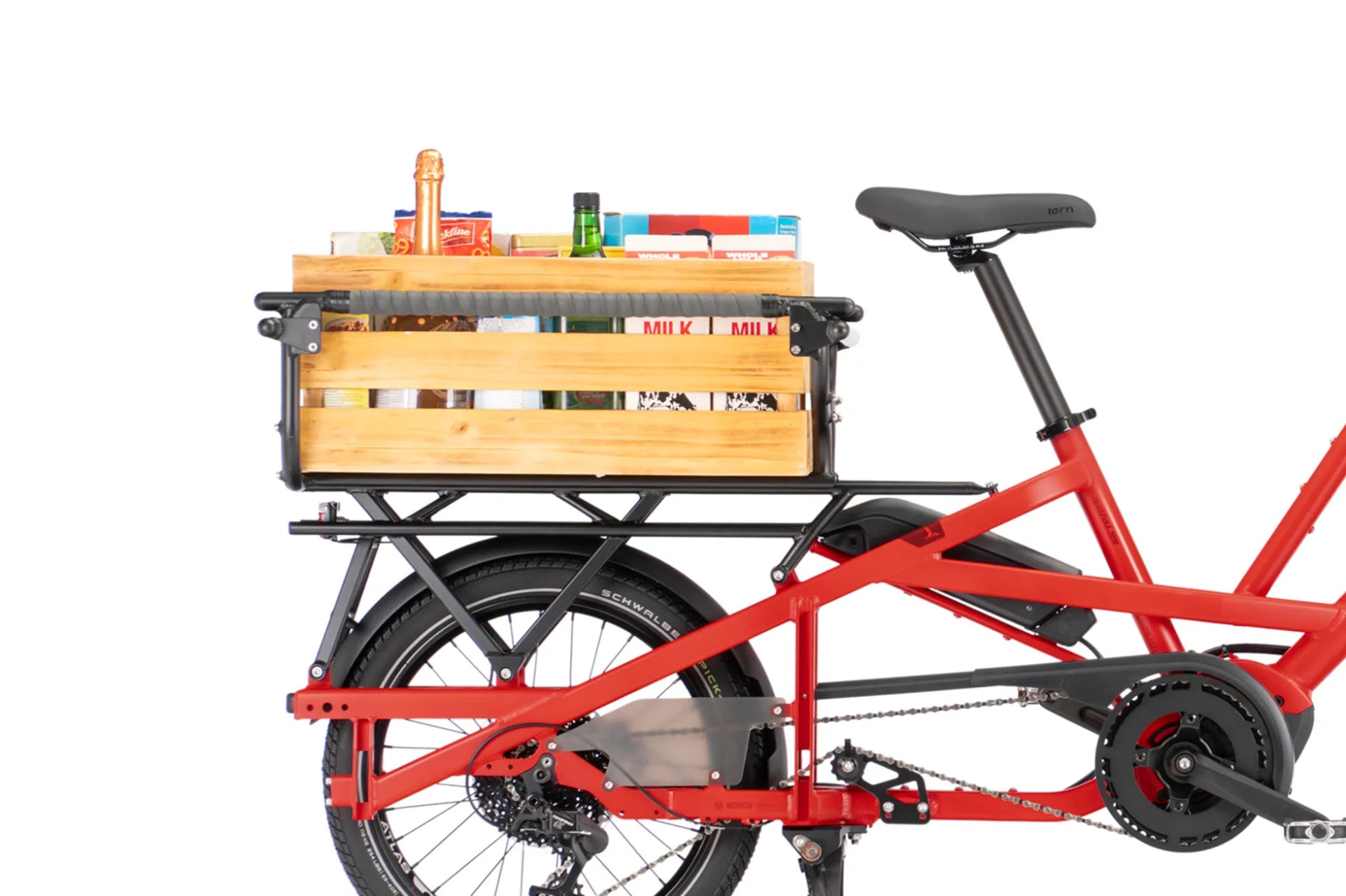

Clubhouse Gen 3
The Clubhouse Gen 3 creates a cargo carrier on the back of the Quick Haul Long. Strap the WeatherTop Bag or WeatherTop Cooler to the rails for an instant grocery setup, or place a 600 x 400 Eurocrate in the available space to load up on anything.
Outer dimensions: 795 × 551 × 230 mm

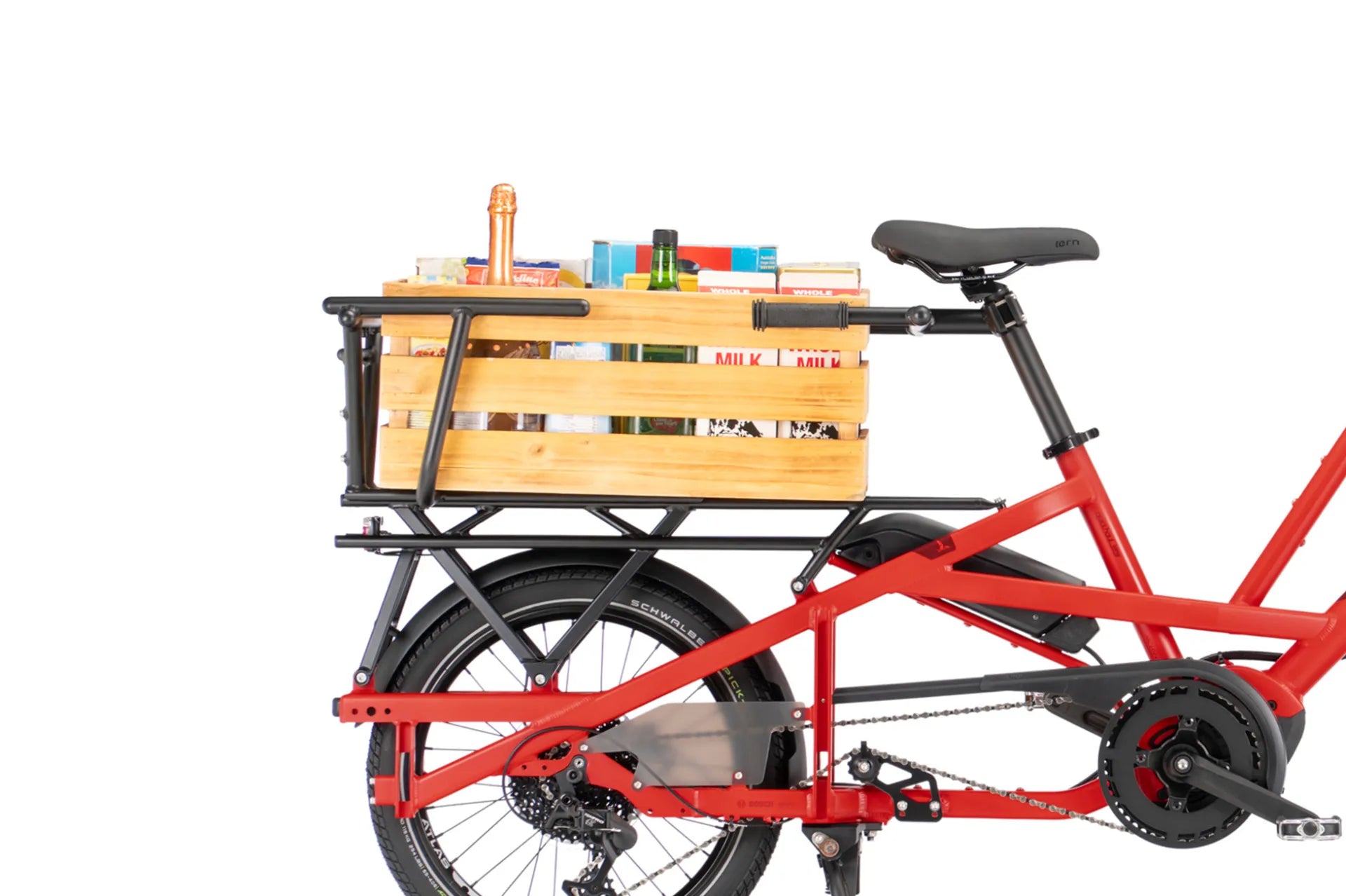

Captain's Chair + Sidekick Joyride Bars
The Captain's Chair and the Joyride Bars may be a passenger solution, but the same setup can carry crates and boxes. There’s room for a box about 320 mm wide (its length and height depend on your exact setup).
Outer dimensions: 533 × 565 × 257 mm (Captain's Chair only)

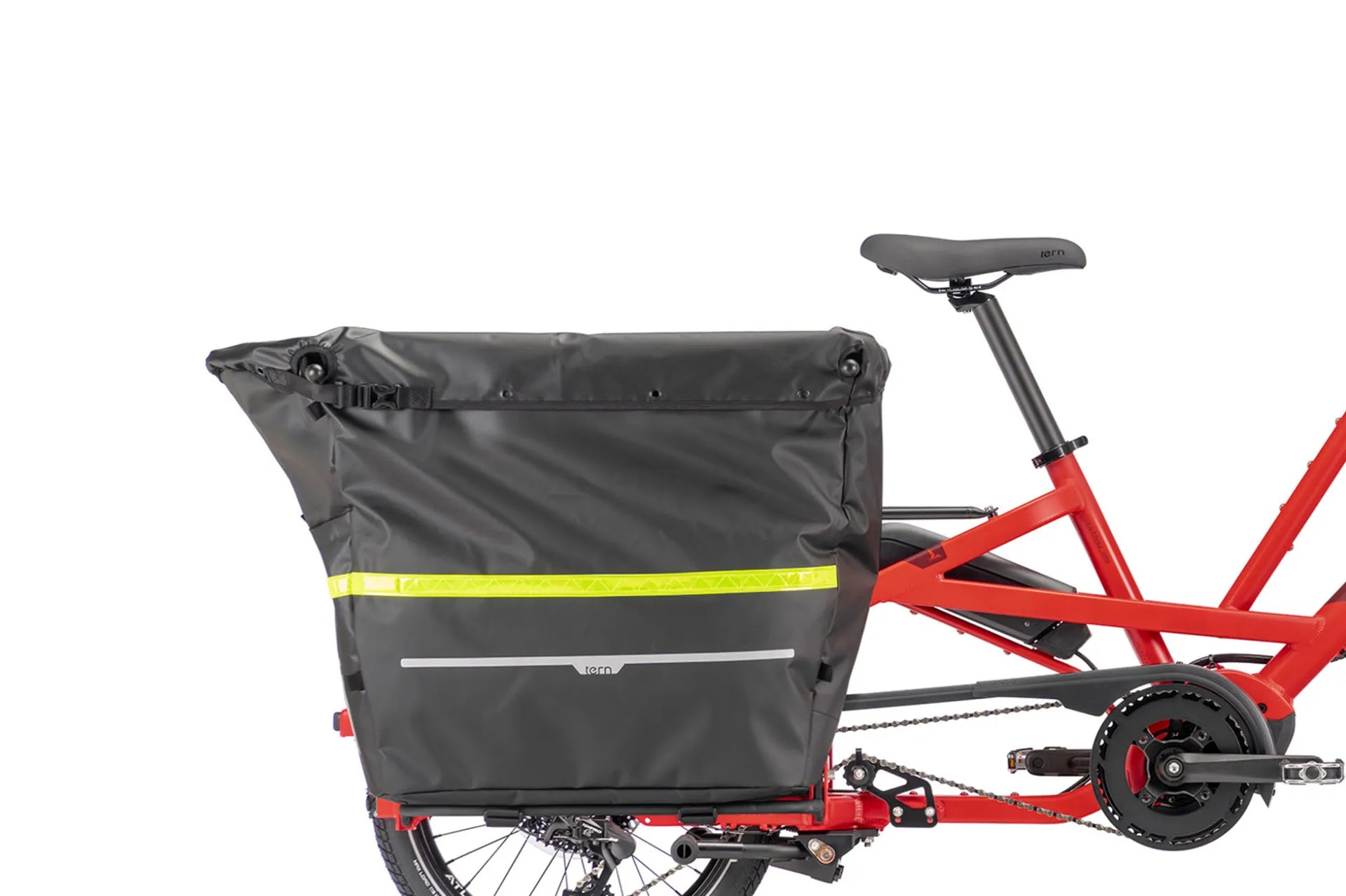

Storm Box
When combined with the Clubhouse Gen 3 and Stow Decks, the Storm Box transforms the rear of the Quick Haul Long into a massive, weather-protected bucket. Use the included Cargo Lid to protect your stuff from rain and prying eyes. Volume: 160 L
Outer dimensions: 680 x 465 x 570 mm
Bags & Baskets

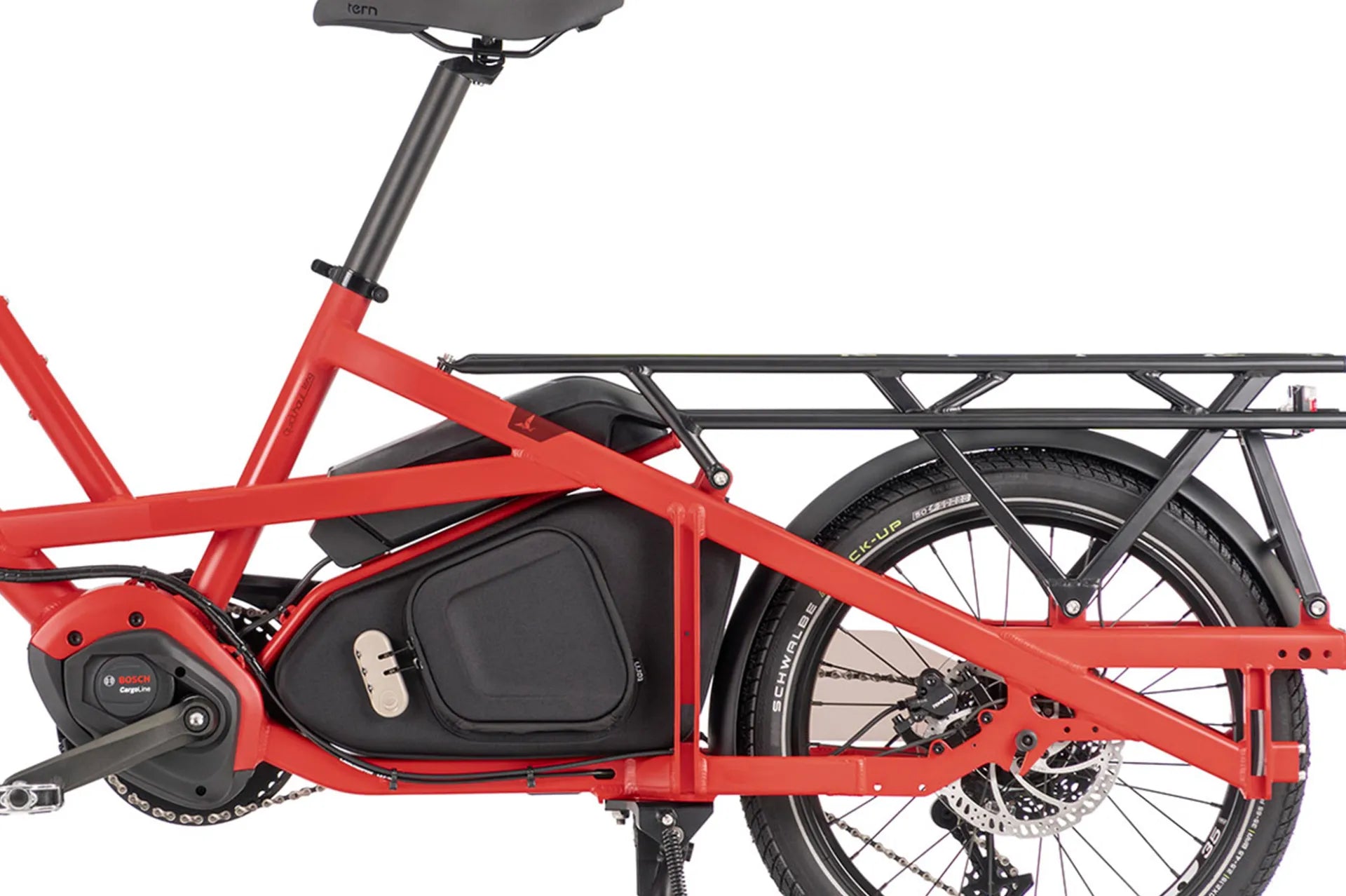

Cache Box L
This spacious, lockable frame bag fits right below the battery for discreet storage. It has adjustable dividers to keep your essentials neat, such as a chain lock, rain gear, or tools.
Volume: 5 L Outer dimensions: 445 × 133 × 247 mm

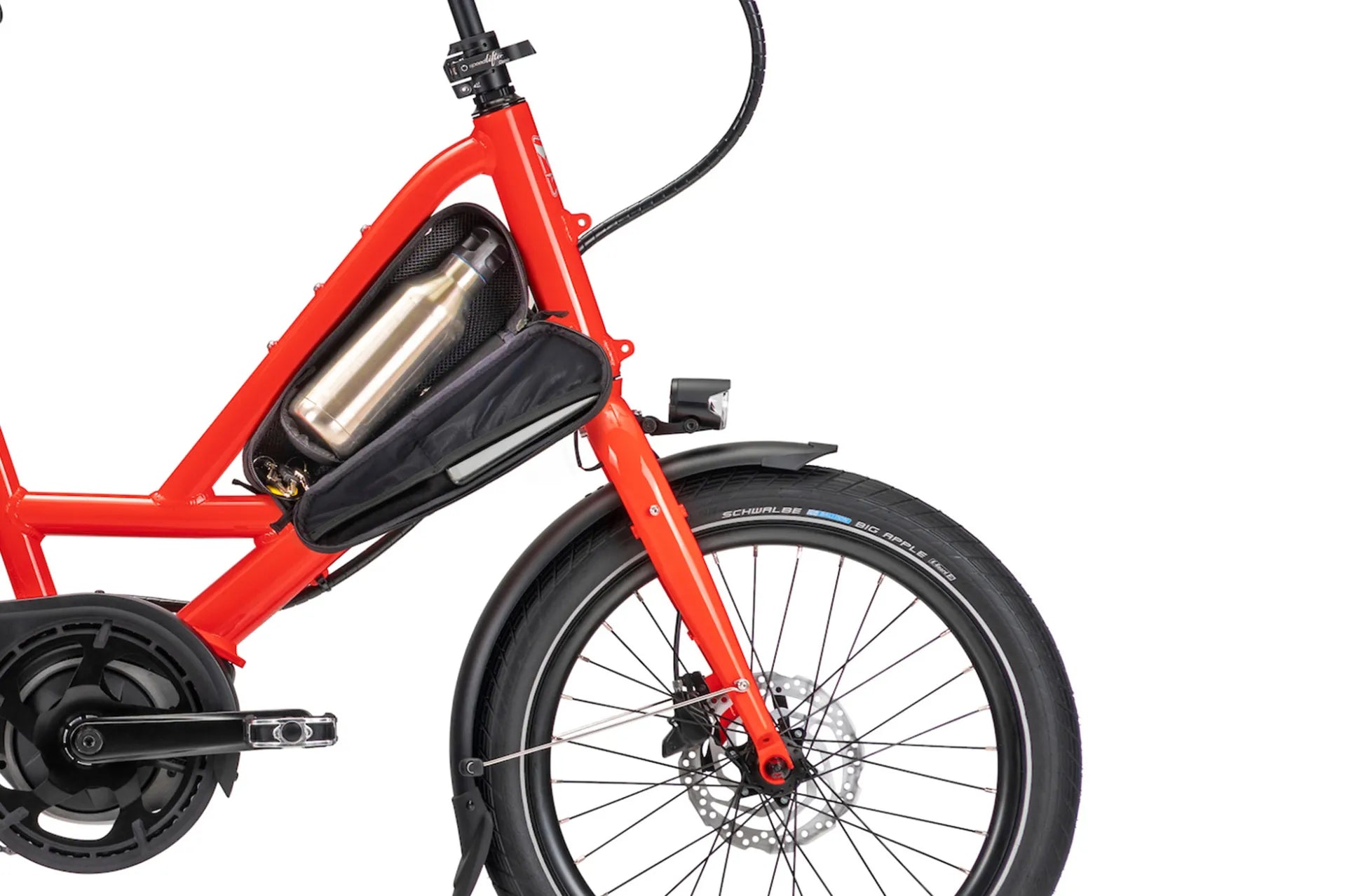

Tern Glovebox
The water-resistant Tern Glovebox fits perfectly between the Quick Haul Long’s top and down tubes. It stashes your wallet, keys, chain lock, or anything else you need close at hand.
Max load limit: 2 kg Volume: 1.9 L Outer dimensions: 305 × 124 × 115 mm

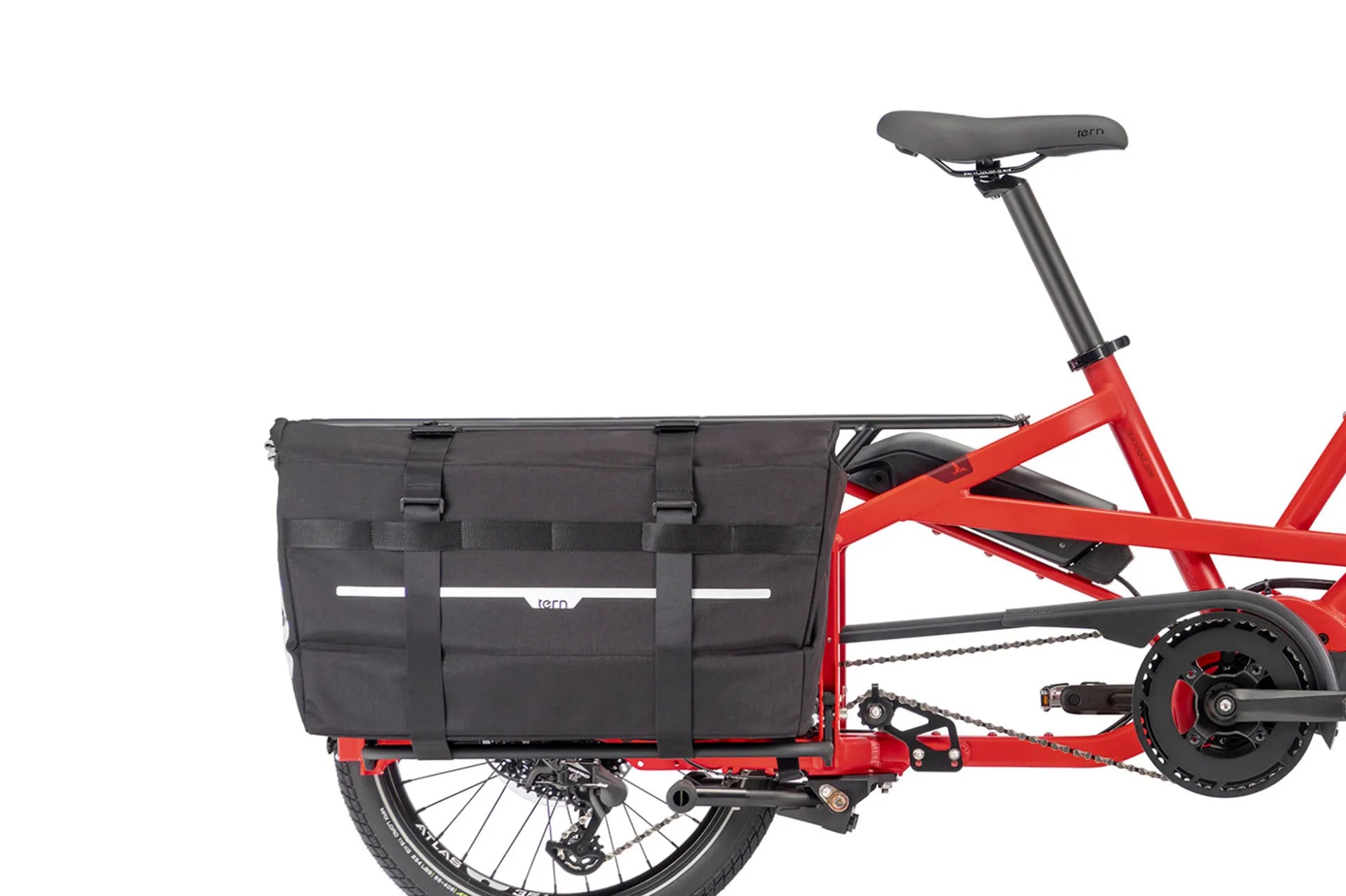

Cargo Hold 52 Panniers
The Cargo Hold 52 Panniers serve as the Quick Haul Long’s extra roomy trunk. Can be used as a roll-top or in bucket mode for oversized cargo. Fidlock® buckles make opening and closing a snap.
Max load limit: 15 kg per pannier (30 kg per pair)
Volume: 52 L per pannier (104 L per pair)
Outer dimensions: 605 x 335 x 40 mm (folded)

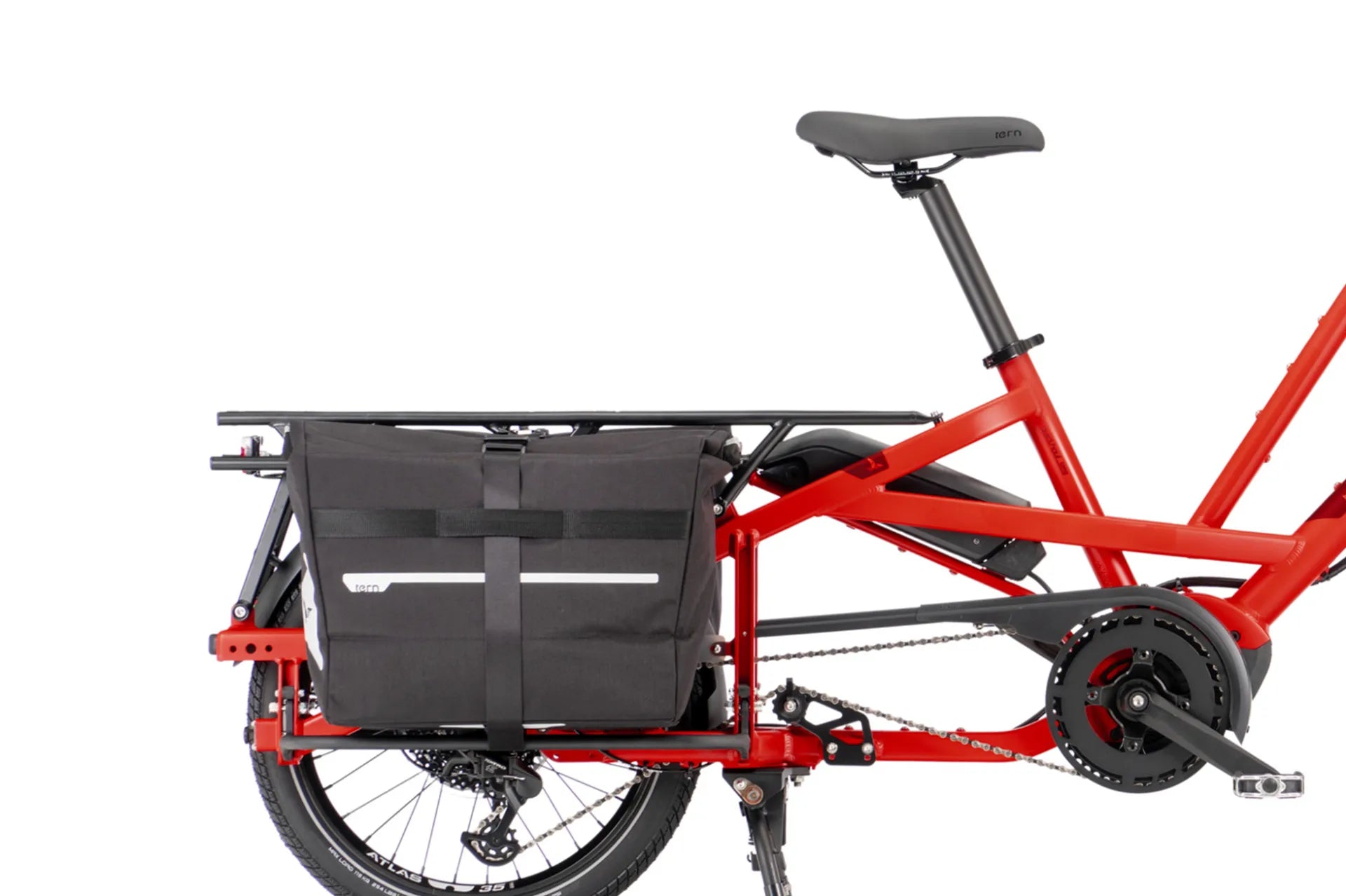

Cargo Hold 37 Panniers
Cargo Hold 37 Panniers are for when you don’t need to carry that much stuff and want to create some legroom for your rear passenger. Same roll-top design and bucket mode features, while a single Fidlock® buckle keeps things secure.
Max load limit: 15 kg per pannier (30 kg per pair)
Volume: 37 L per pannier (74 L per pair)
Outer dimensions: 435 x 310 x 30 mm (folded)
Front Racks
Transporteur Rack
The Transporteur Rack is a modular front cargo carrier that fits quite a lot. It’s perfect for the WeatherTop Bag, WeatherTop Cooler, a 300 x 400 mm Eurocrate, a standard crate of 20 beers, or a recycled wooden box.
Max load limit: 20 kg
Outer dimensions: 430 × 420 × 267 mm
Hauler Rack
The Hauler Rack is an open-ended rack that is big enough to carry bulky cargo but small enough to let you maneuver the bike with ease.
Max load limit: 20 kg
Outer dimensions: 320 × 315 × 215 mm
Rear Racks

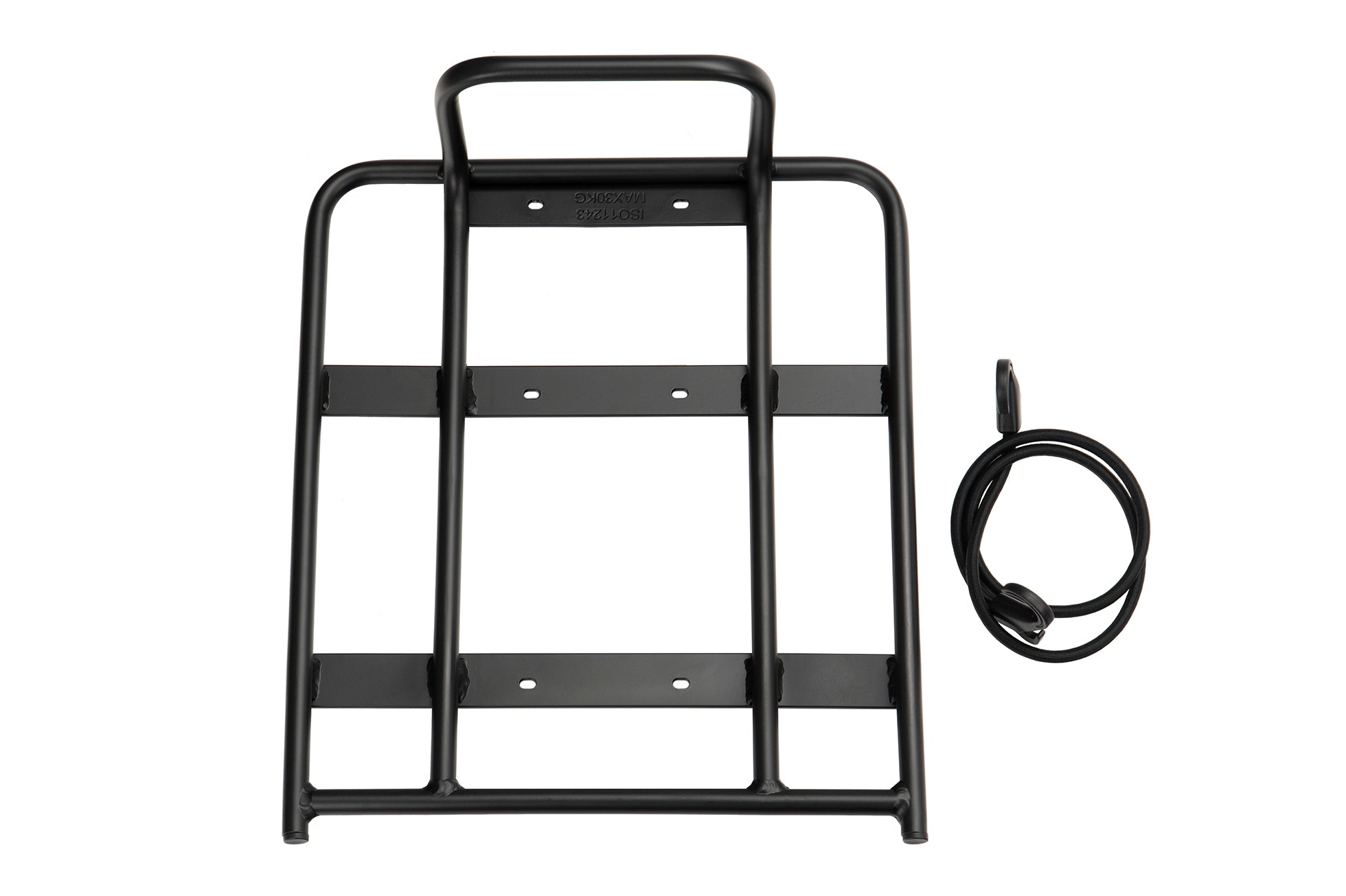

Cargo Tray
The Cargo Tray creates a strong, generously sized cargo platform atop the HSD’s rear rack. The L-shape is great for hauling oversized stuff that won't fit in a crate or basket.
Max load limit: 30 kg
Outer dimensions: 458 × 396 × 172.5 mm

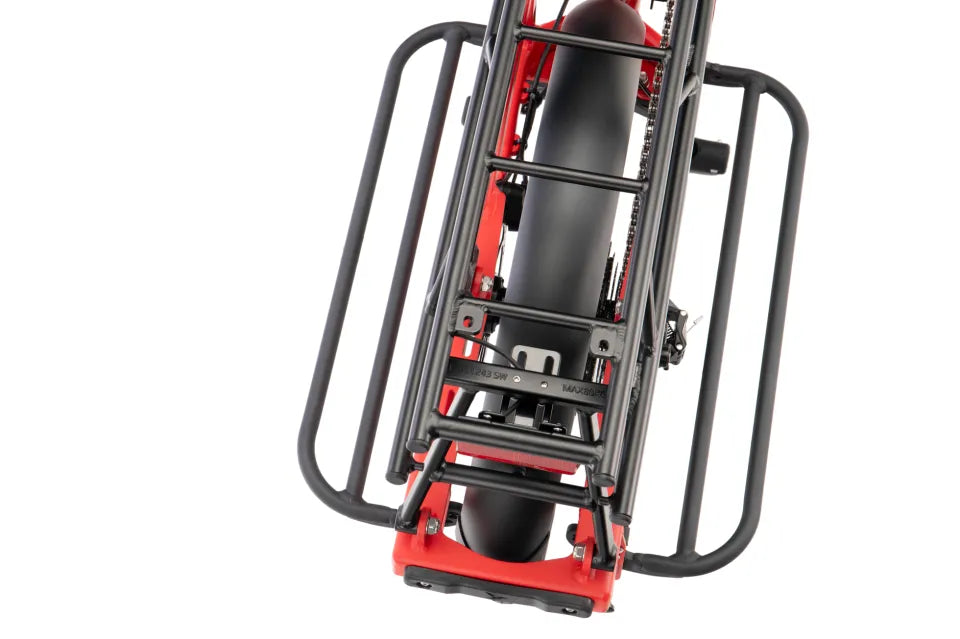

Stow Decks
Stow Decks are sturdy platforms for the Quick Haul Long that deploy and lock at five angles to keep partially loaded panniers stable and compact and support full loads. Integrates with the Cargo Hold 52 Panniers to fold away neatly when not in use.
Max load limit: 35 kg
Outer dimensions: 525 x 161 x 74 mm
For Towing a Trailer or Bike

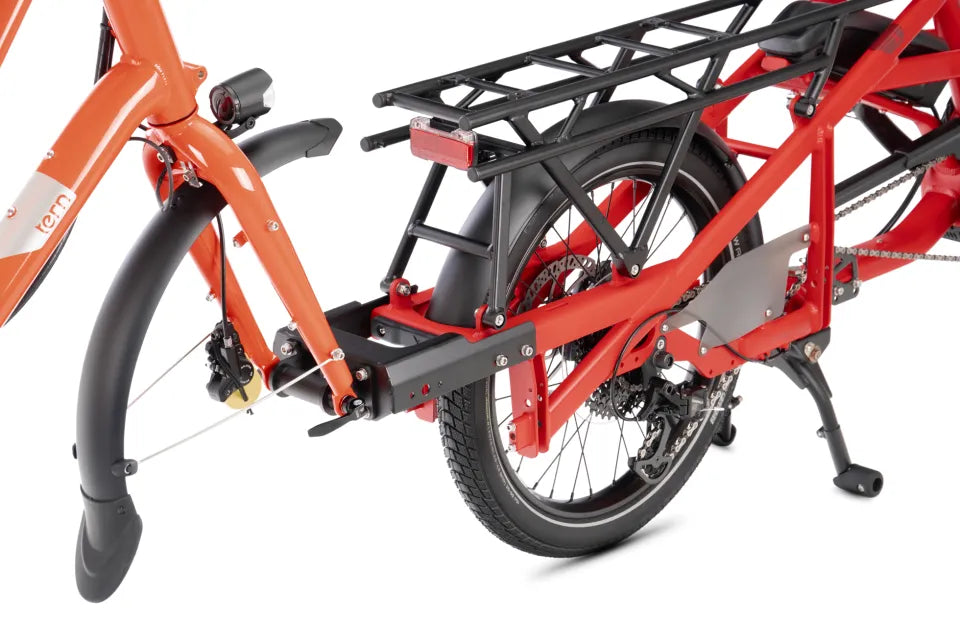

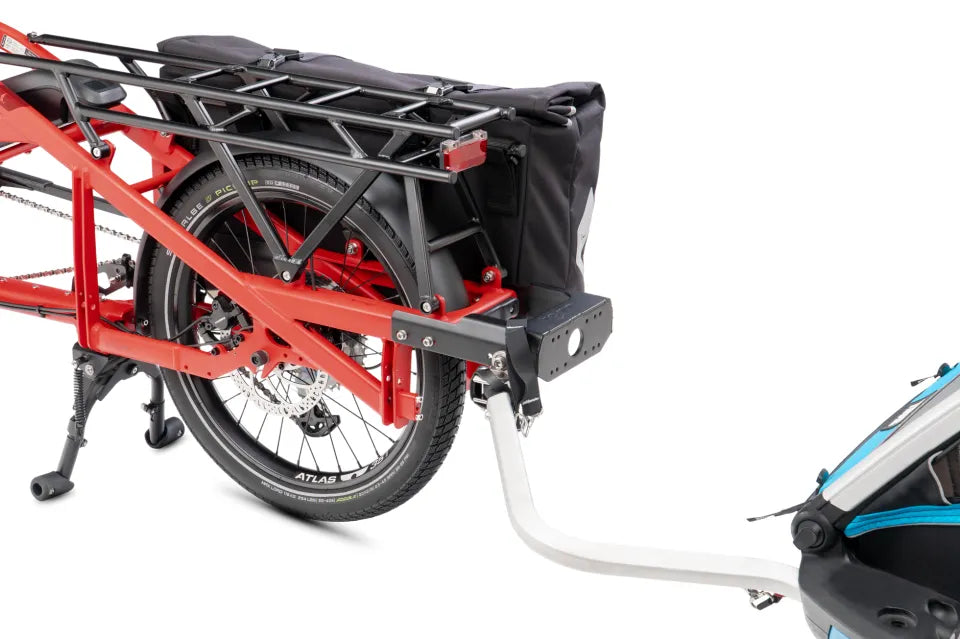

Tail Hitch L
The Tail Hitch L fits a range of trailer hitches to securely link a trailer to the Quick Haul Long, letting you haul tons more without your panniers and lower deck accessories getting in the way.
Bike Tow Kit
The Bike Tow Kit lets you bring an extra bike along for any ride—whether that’s a mountain bike for your camping trip, or your kid’s bike when they decide waving to passersby is more fun than riding (it happens).
